Swivel Wedge Head Coupler 48.3mm

$13.50 + GST
$13.50 + GST
Shipping calculated at checkout.

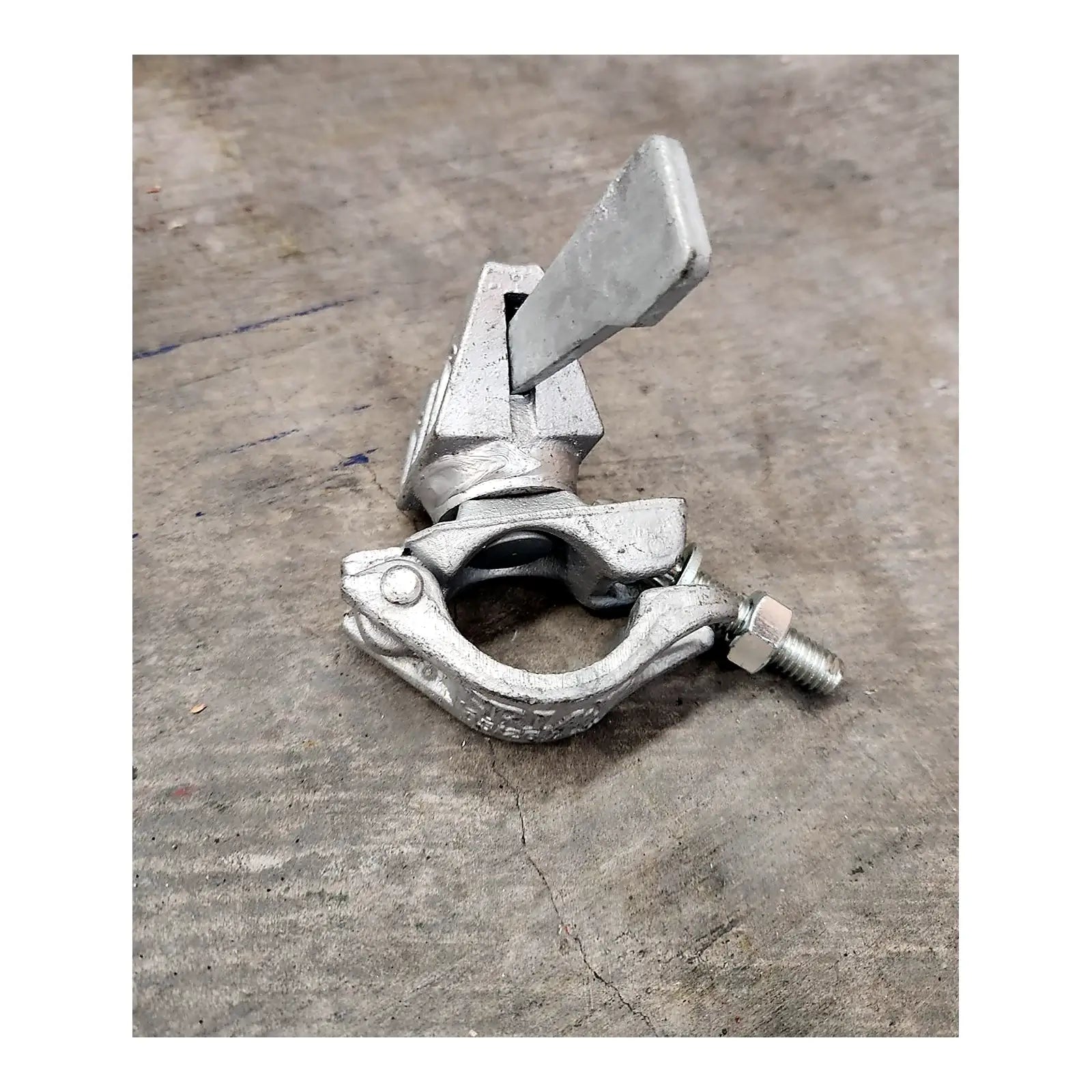

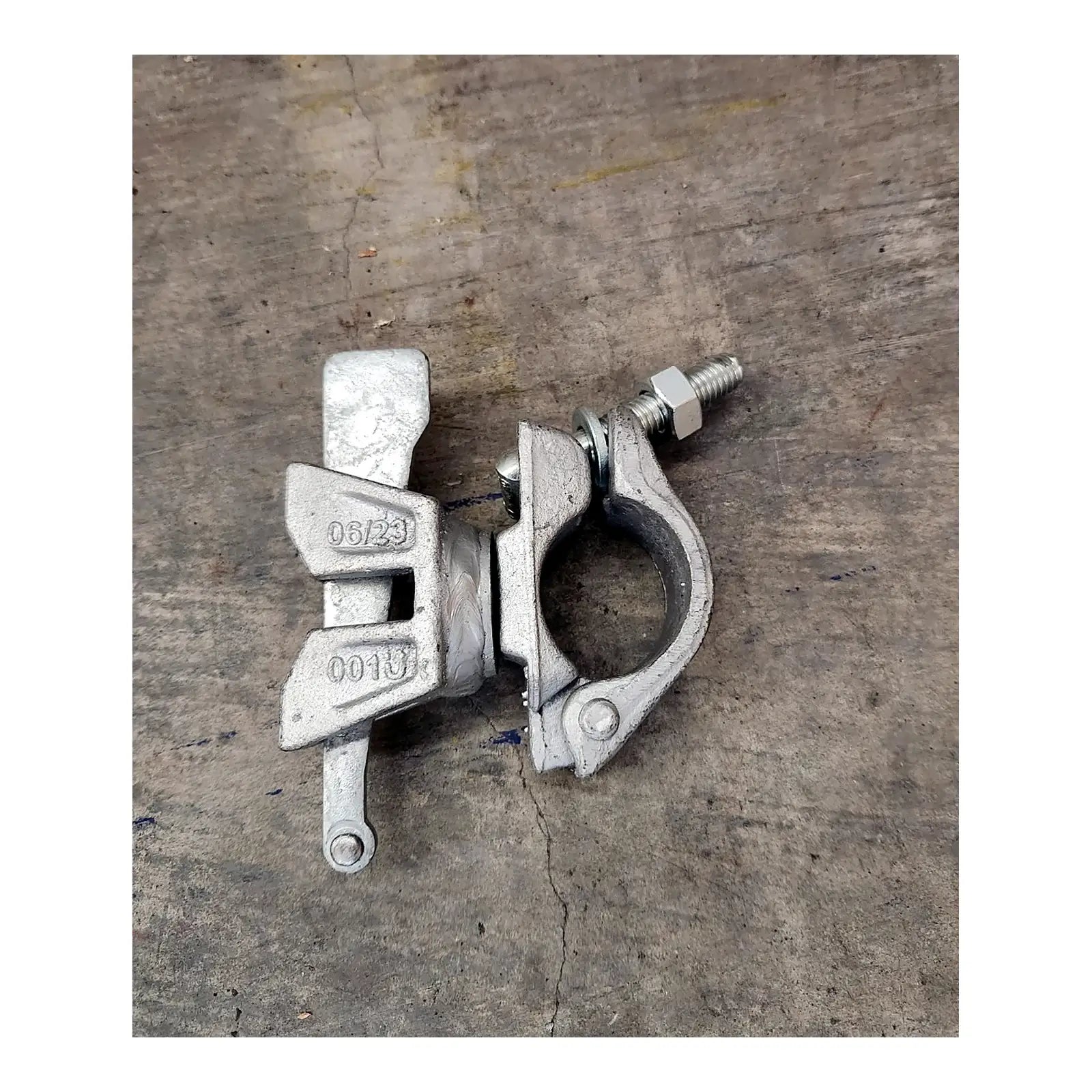

A swivelling wedge head coupler for connecting 48.3mm scaffold tube to compatible modular scaffold systems where the tube angle needs to be adjusted on site. The Q235 steel fitting is supplied to the certificate specification with an M14 x 81mm bolt and 21mm flange nut.

Test report note:  EN 74-1:2022+A1:2025 Clause 7.2.3. T

Scaffold components must be selected, installed and inspected by competent persons in accordance with applicable New Zealand requirements, site conditions and the scaffold design. Test report results refer to the samples tested.

Key Features

  • Swivelling wedge head coupler for compatible modular scaffold systems.
  • Adjustable angle connection for 48.3mm tube.
  • M14 x 81mm bolt with 21mm flange nut.
  • Q235 steel construction.
  • SGS sample tested with reference to EN 74-1:2022+A1:2025.

Specifications

  • Certificate product name: WEDGE HEAD COUPLER SWIVELING
  • Specification: 48.3mm / M14 x 81mm / 21mm flange nut
  • Material: Q235
  • Reference testing: With reference to EN 74-1:2022+A1:2025 Clause 7.2.3
  • Application: Adjustable wedge head scaffold connection

Shipping

Pick up from Panmure, Auckland or Nationwide freight available. Custom shipping quote provided after checkout. See our shipping policy for more information.
