Tube Clamp - Two Socket Cross
Couldn't load pickup availability

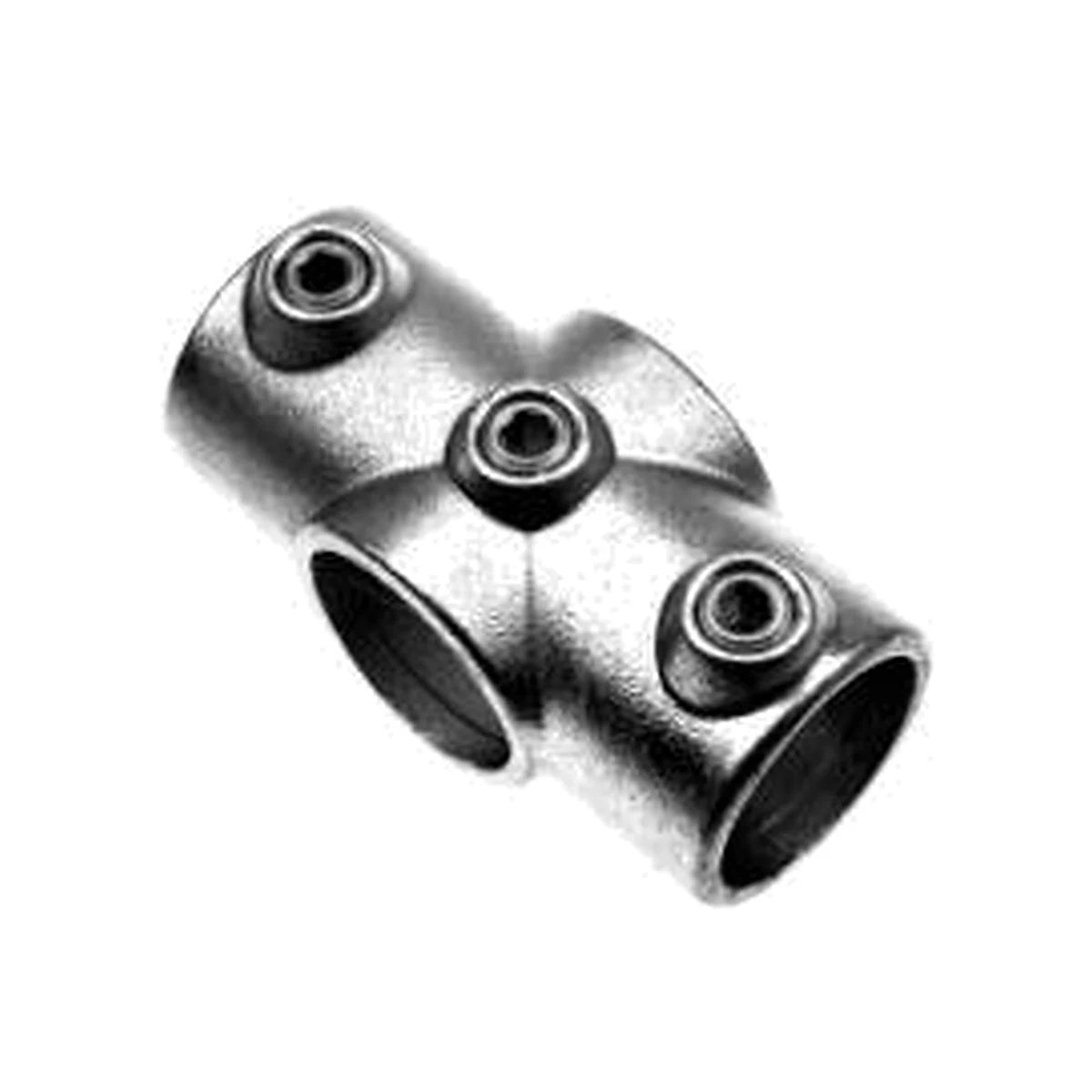

Our Tube Clamp Two Socket Cross is designed for connecting a vertical tube through the fitting with two horizontal tubes at right angles. It is commonly used in handrails, guardrails, barriers and modular tube structures.
The Tube Clamp System is engineered for fast and easy assembly of handrail structures without the need for welding, bending or threading. Fits 48.3mm OD tube.
Key Features
Key Features
• Connects one vertical tube with two horizontal tubes at right angles
• Heavy-duty galvanised tube clamp fitting
• Designed for 48.3mm OD tube
• Quick installation using grub screws
• No welding or specialist fabrication required
• Suitable for handrails, guardrails, barriers and modular tube systems
Specifications
Specifications
- Product type: Tube clamp fitting
- Fitting type: Two socket cross
- Tube compatibility: 48.3mm outside diameter tube
- Material: Galvanised steel
- Finish: Galvanised
- Fixing method: Grub screw / hex key tightening
- Common uses: Handrail, guardrail, barrier and tube framework systems
Shipping
Shipping
Pick up from Panmure, Auckland or Nationwide freight available. Freight is calculated at checkout where possible; bulky or larger orders may require a freight quote before dispatch. See our shipping policy for more information.
