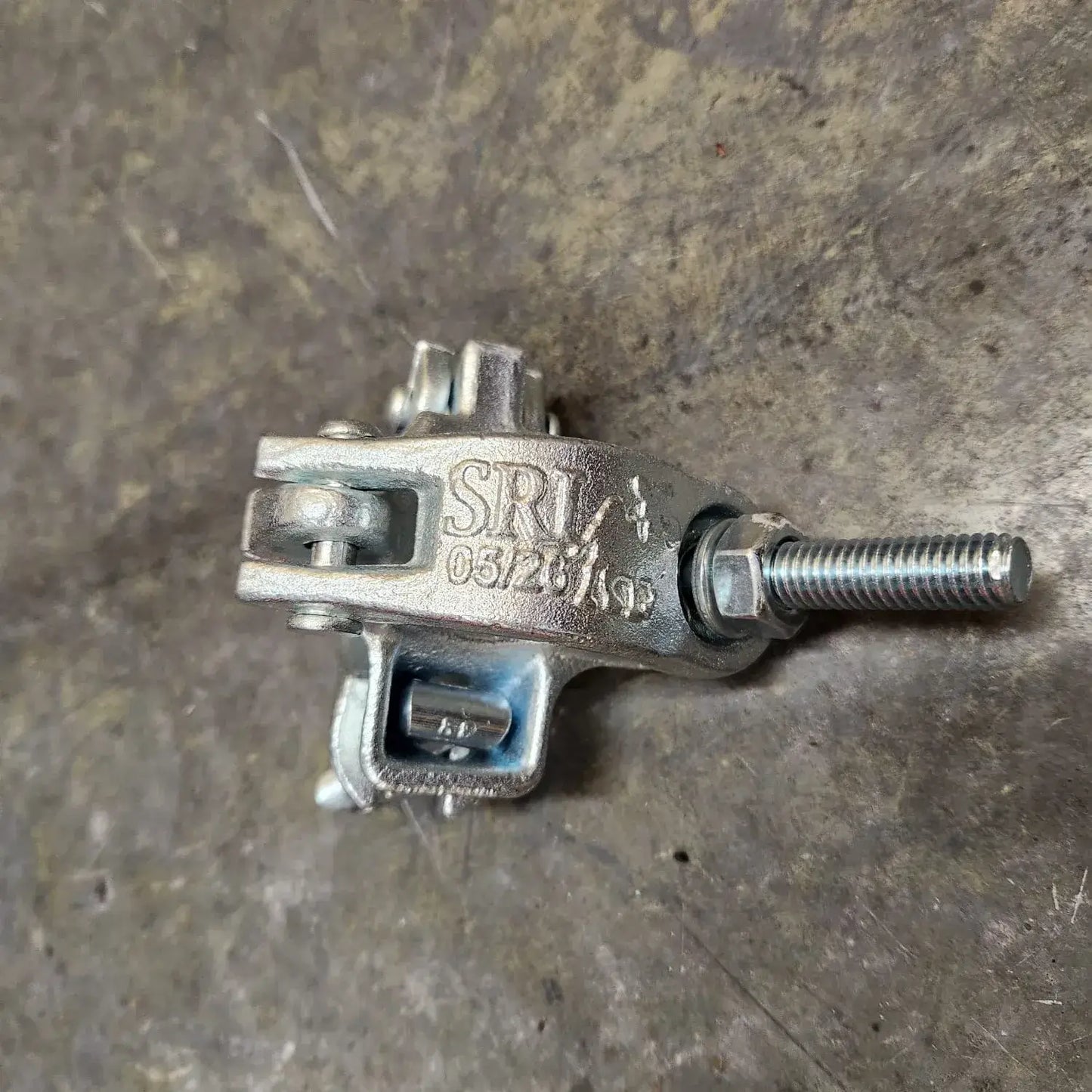

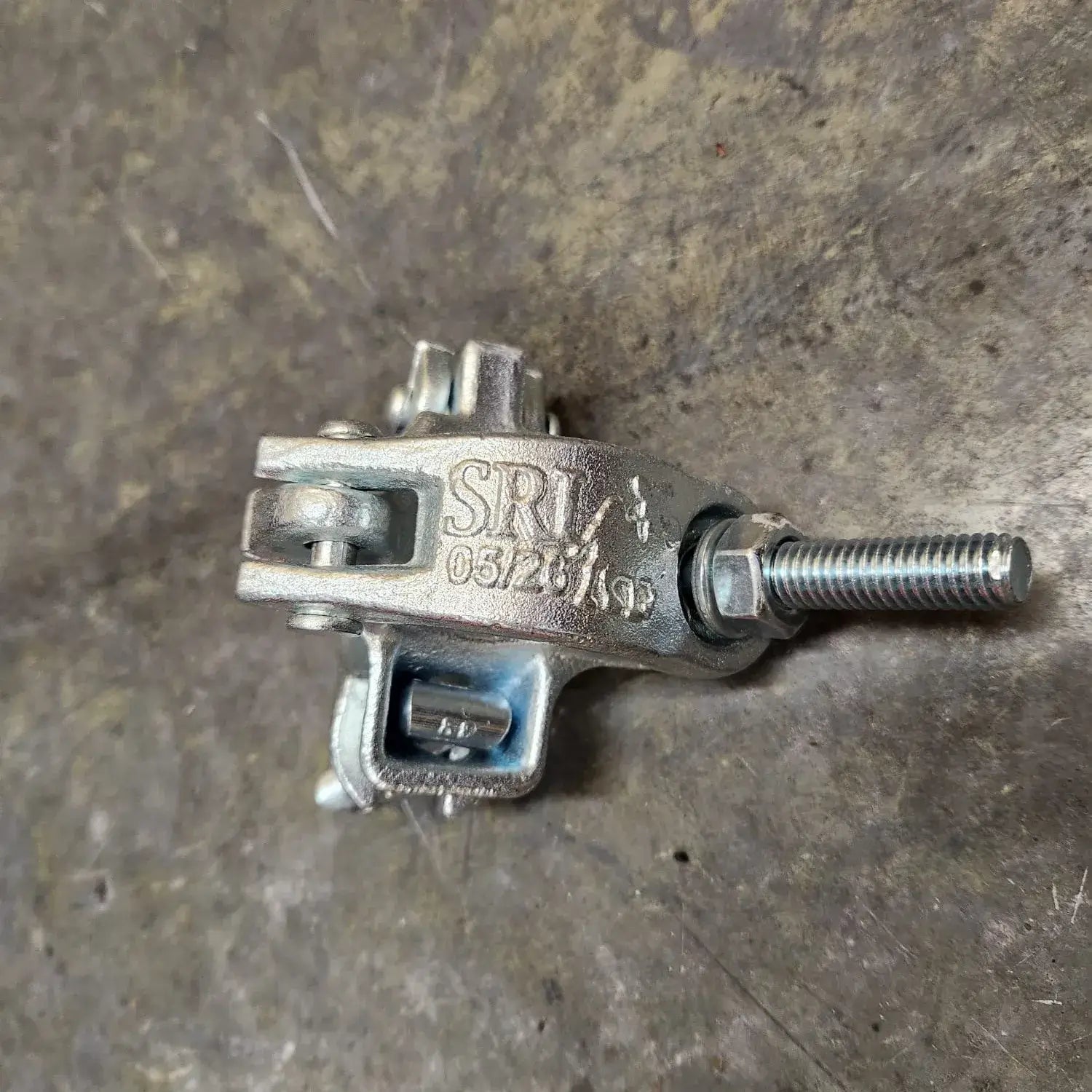

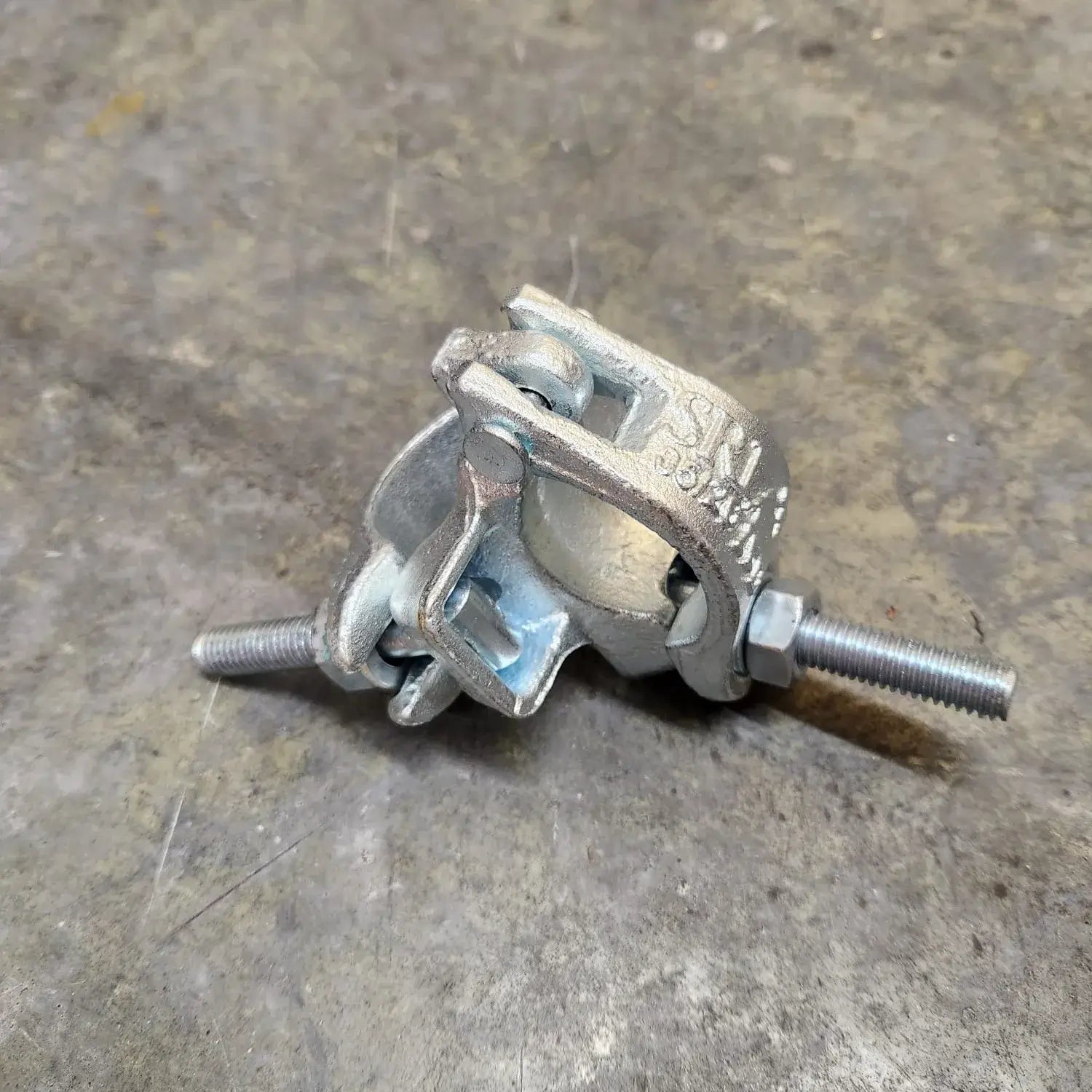

• 48.3mm galvanised double scaffold coupler for tube and clip scaffolding
  • 48.3mm galvanised double scaffold coupler for tube and clip scaffolding
1 2

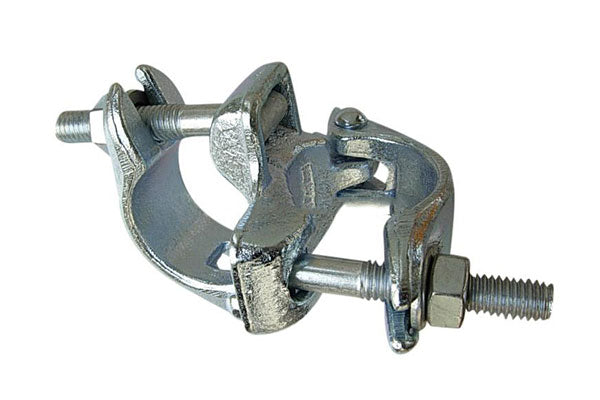

Double Coupler 48.3mm

$6.00 + GST
$6.00 + GST
Shipping calculated at checkout.

A heavy-duty right-angle scaffold coupler for connecting two 48.3mm scaffold tubes at 90 degrees. Made from Q235 steel, this fitting is designed for rigid tube-to-tube connections on scaffold structures, handrails, edge protection and temporary works where a fixed connection is required.

Test report note: AS/NZS 1576.2:2016

Scaffold components must be selected, installed and inspected by competent persons in accordance with applicable New Zealand requirements, site conditions and the scaffold design. Test report results refer to the samples tested.

Key Features

  • Right-angle connection for 48.3mm scaffold tube.
  • Q235 steel construction.
  • Suitable for fixed scaffold tube connections.
  • SGS sample tested for slip and distortion performance.
  • Practical fitting for general scaffold and temporary works applications.

Specifications

  • Certificate product name: DOUBLE COUPLER
  • Specification: 48.3 x 48.3mm
  • Material: Q235
  • AS/NZS 1576.2:2016
  • Application: Fixed 90-degree scaffold tube connection

Shipping

Pick up from Panmure, Auckland or Nationwide freight available. Custom shipping quote provided after checkout. See our shipping policy for more information.

Frequently Asked Questions

What is a double coupler used for?
A double coupler is used to connect two scaffold tubes at a fixed 90-degree angle. It is commonly used in tube-and-clip scaffolding, handrails, edge protection and temporary works.

What size scaffold tube does this double coupler fit?
This double coupler is designed for 48.3mm scaffold tube, which is the standard tube size used in many tube-and-clip scaffolding systems.

Is this the same as a right-angle coupler?
Yes. A double coupler is also commonly called a right-angle coupler because it connects scaffold tubes at 90 degrees.

What is the double coupler made from?
This double coupler is made from Q235 steel and is designed for rigid scaffold tube connections.

Has this coupler been tested?
This product has an SGS sample test report noting AS/NZS 1576.2:2016. Scaffold components should always be selected, installed and inspected by competent persons for the specific site and scaffold design.

Can I buy double couplers in bulk?
Yes. Double couplers are available individually or come in bags of 25. Contact us for trade and bulk pricing.

View full details
